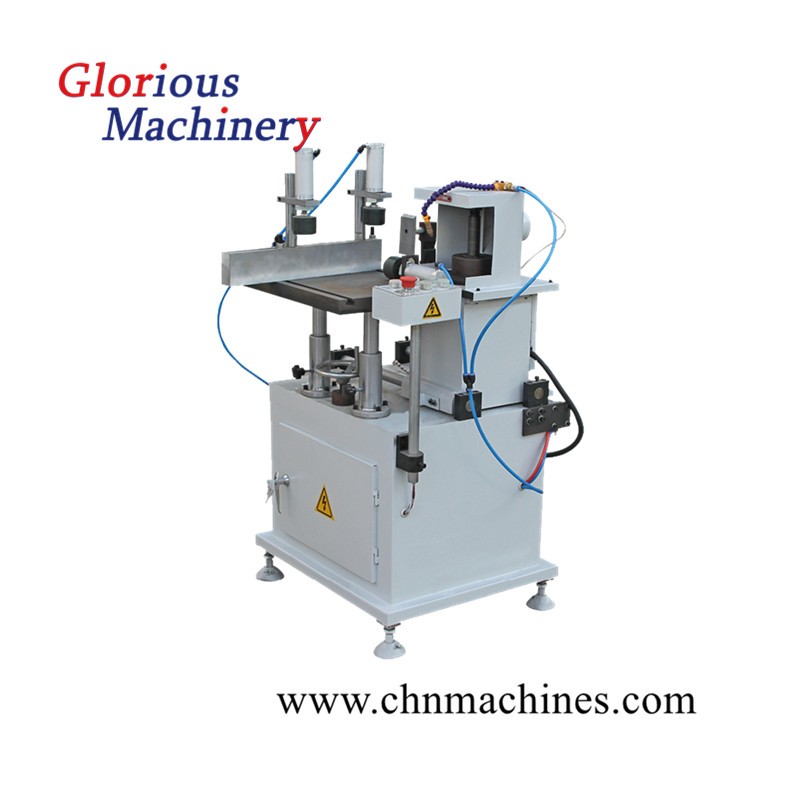

Aluminum Window Door End Milling Machine
Brand :Glorious Machinery
Product origin :CHINA
Delivery time :10
Supply capacity :100SETS/MONTH
Aluminum Window Door End Milling Machine can effectively cut multiple materials at the same time. It is suitable for the processing of the cross-face, countertop and cross-face of various materials.
Product details:
Equipment Features:
Aluminum Window Face Milling Machine can effectively cut multiple materials at the same time.
It is suitable for the processing of the cross-face, countertop and cross-face of various materials.
It can cut lateral faces from 35° to 90° at any angle.
The workbench can be easily adjusted up and down.
The tool is mounted in a high-precision main bearing, and the motor's motion accuracy is not affected by the machining accuracy.
The tool feed uses linear bearing motion to ensure stable working performance.
The circuit system is installed with motor phase sequence protection to improve system safety.
Main Specification and Technical Parameter
Model | CLXD-200 |
Input Supply | 380V 50Hz |
Air Pressure | 0.5~0.8Mpa |
Motor rotary speed | 2800r/min |
Diameter of main shaft | Ø32mm |
Diameter of milling cutter | Ø110-Ø200mm |
Workable journey | 0-320mm |
Workable dimension | 500*350mm |
Milling cutter height | 70mm |
Motor adjustable journey | 0-80mm |
Turning angle of location board | 0-55° |
Max.processing tenoning size | 70*45*200mm |
Overall dimension | 850*740*1280mm |
Cutting surface roughness | 12.5μm |
Weight | 300Kg |
